CNC Routers With T-slot Table

CNC routers with T-slot table

Our CNC router with T-lost tables are suitable for advertising , signs, wood, plastic and aluminium milling and certainly a lot for plastic milling. They are perfect CNC routers for 3D models. We have lots of customers in Scandinavia using them for various jobs, normally done by VMC. Our T-slot tables CNC routers are with advanced structure design, smooth running and durable, but at a very economical price.

  • REU900 and REU1212 CNC router are adopted screw drive to ensure the accuracy on the working process
  • REU1325 , REU1530  and REU2030 CNC routers are adopted gantry dual-motor drive to make sure the movement fast and smooth.

OurT-slot table CNC Router are engineered and built to fit your application as well as your budget. Our CNC Router are available in large and small table configurations and are capable of handling a wide variety of milling, drilling, contouring, boring, shaping, grooving, routing and engraving projects. Applications for these CNC router include: cut out letters, inlays, and ADA and 2.5-D and 3D signs; cabinets, furnitures, store fixtures and other woodworking and plastic POP projects; control panels; and plastic fabrication and machining. All of our CNC Router are built to be rugged, dependable and are backed with superior customer support. Our T-slot CNC routers are with high – perfomance and low price . The quality of every CNC router is excellent. Every CNC router carries a full year warranty and our great technical team support! You will find out many advantages after you have used our CNC router.  If you are a small shop – The T-slot table CNC router is a perfect fit. Our goal is to offer you more and make costs to you less!

REU900 – New 2020 model, new features´ CNC routers

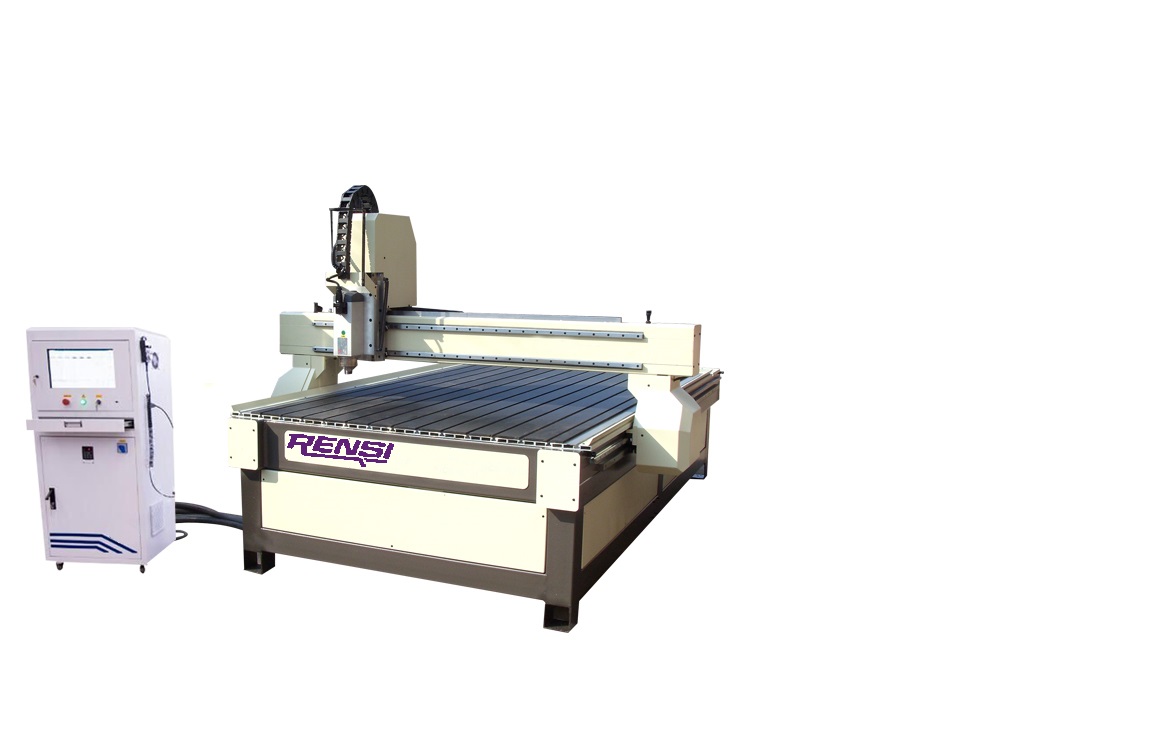

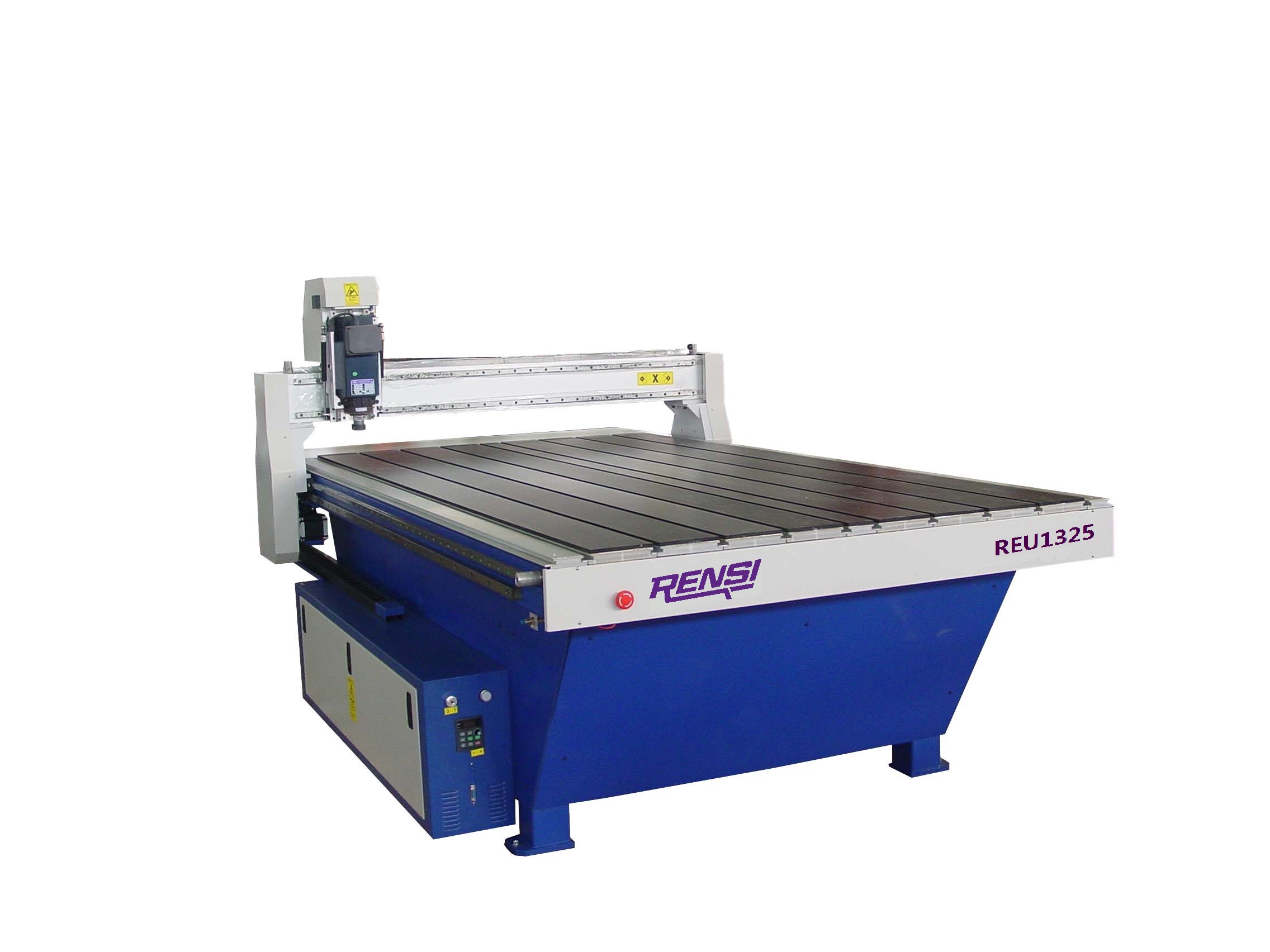

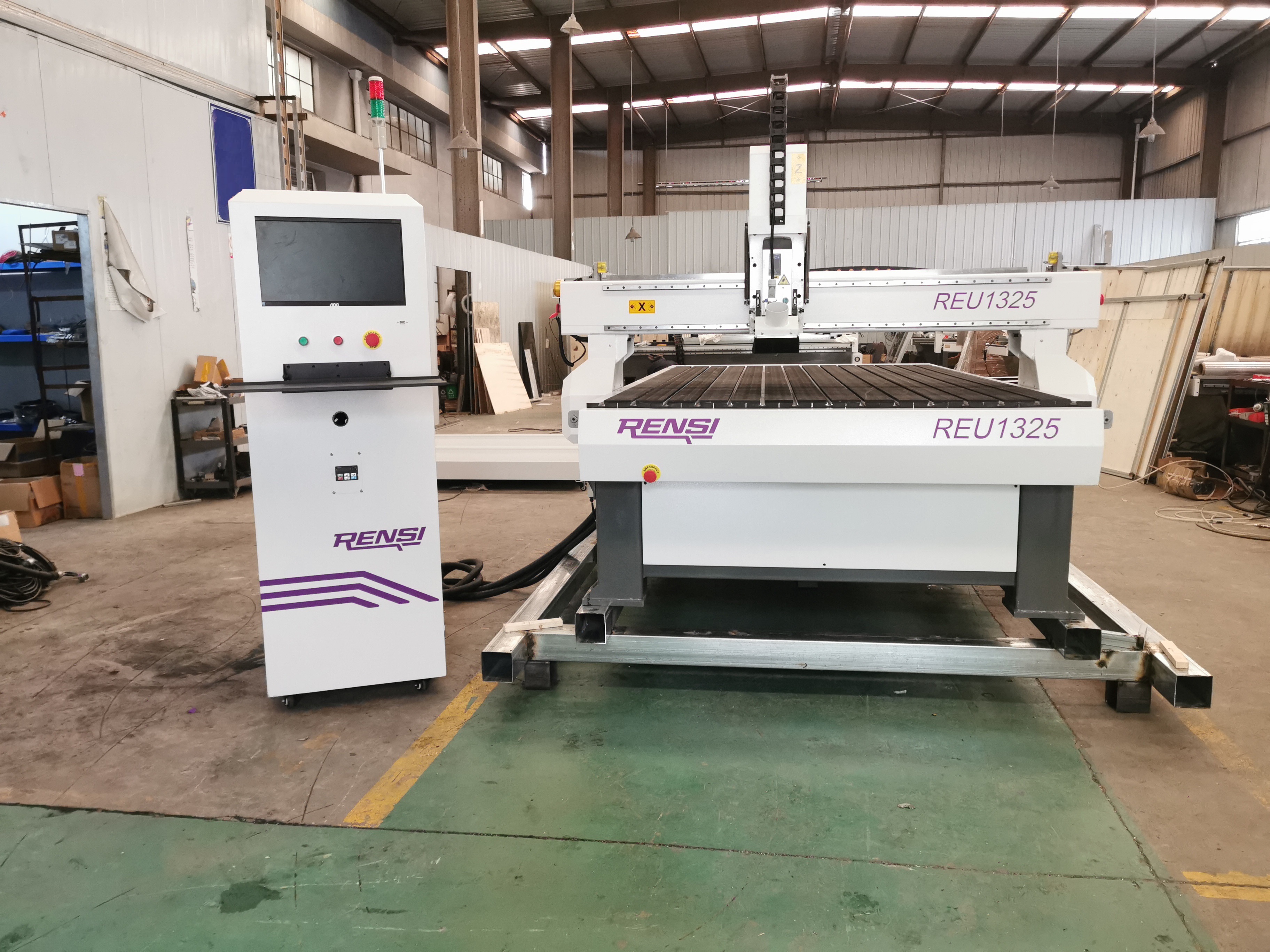

REU1325A – Small floor area, big milling area, economical router







Tekniset tiedot

Item REU900 REU1212 REU1325 REU1530 REU2030
Working size (X,Y) 900×700 1200×1200 1300×2500 1500×3000 200×3000
Table to gantry 200mm
Z travel height 180mm 180mm
Spindle 1,5KW China Spindle 2.2KW Italy Elte 6KW Italy HSD
Table T-slot table
Spindle speed 24000RPM 18000RPM
Inverter Delta Inverter
Motor Stepper Motor
Transmission Balls Screw and Square Linear Guide in all axis; Coupling in Z Rack & Pinion , Linear Guide in X &Y; Ball Screw and Coupling in Z
Controller Ncstudio PM95A with Lambda
Voltage 220V/single phase/50Hz 380V/three phases/50Hz
Weight 365 KGS 450KGS 1000KGS 1100KGS 1400KGS
