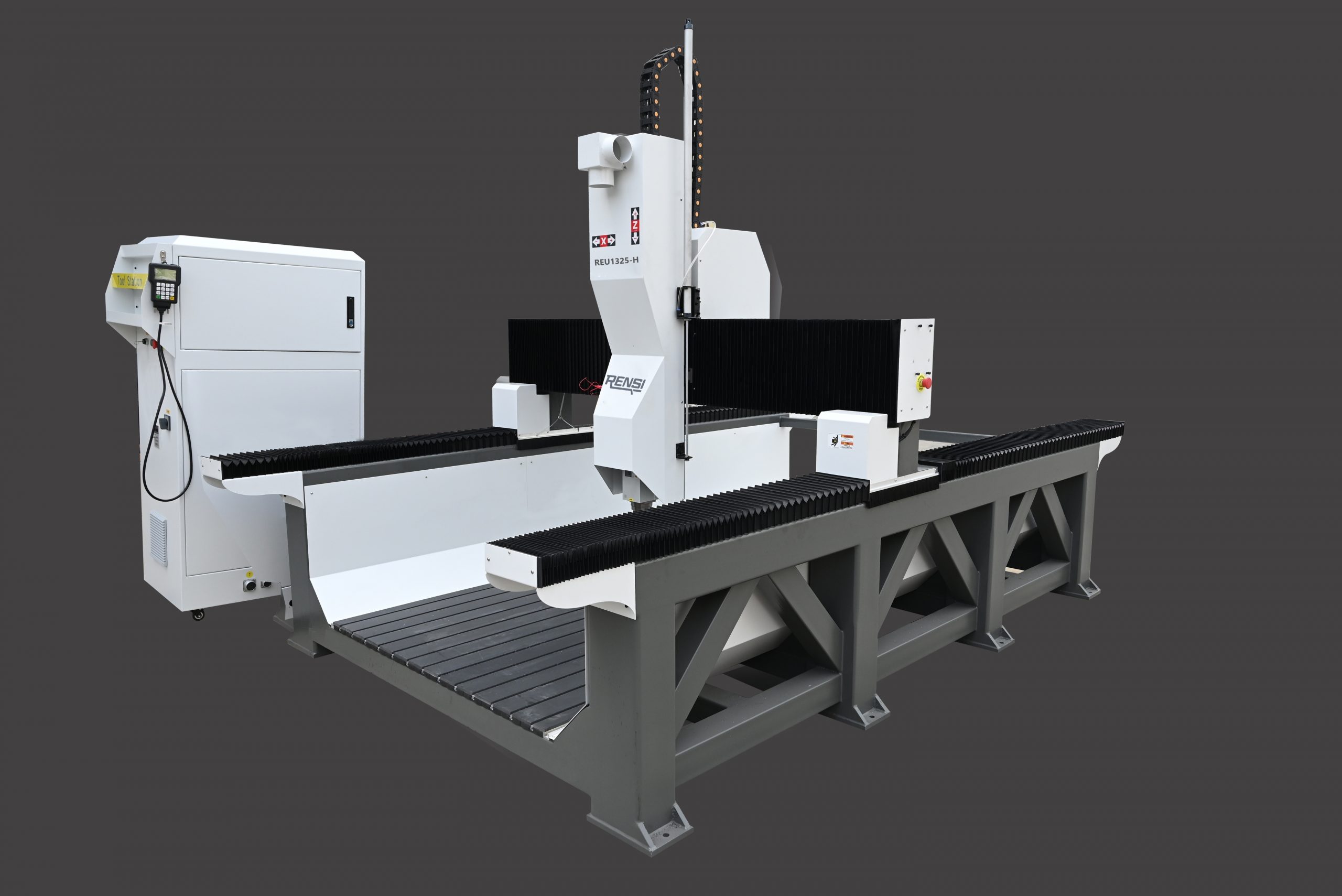

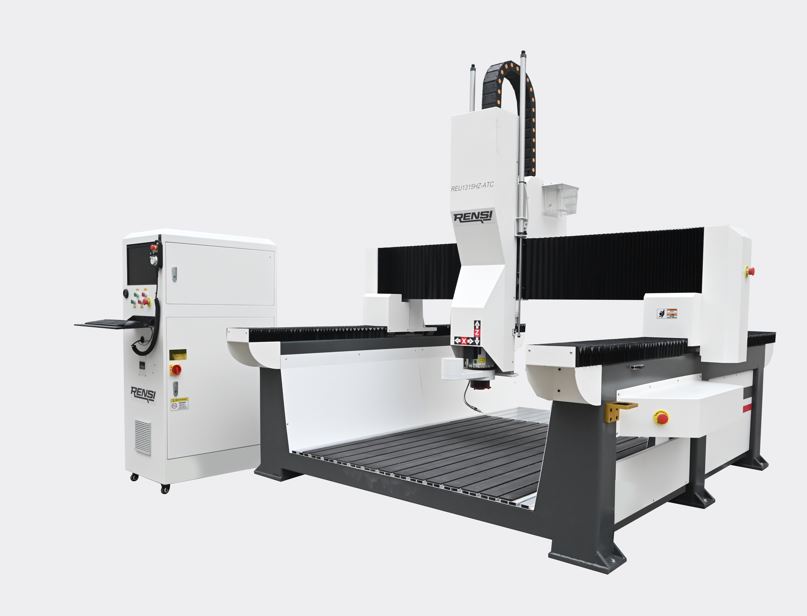

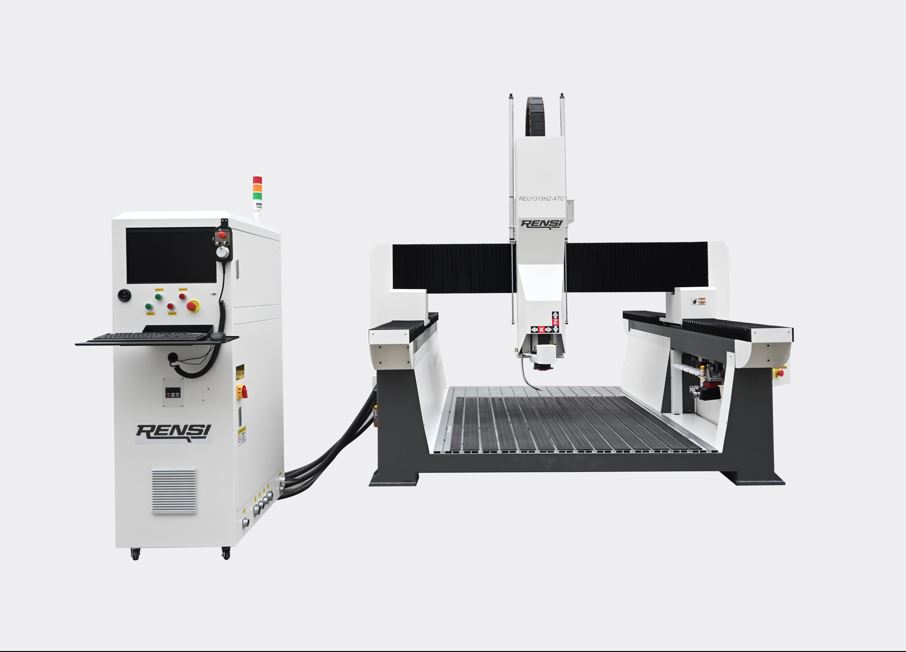

CNC Router with tool changer and High Z axis
Tekniset tiedot
Item | REU1315ATC-HZ | REU1325ATC-HZ | REU1530ATC-HZ | REU2030ATC-HZ | ||
Working size (mm) | 1300x1500x700 | 1300x2500x700 | 1500x3000x700 | 2000x3000x700 | ||
Table to gantry | 800mm | |||||
Max. travel speed | 40m/min | |||||
Max. working speed | 20/min (depend on the materials) | |||||
Spindle | 9KW HQD ATC spindle | |||||
Collect/tool holder | ER32/ISO30 | |||||
Table | T-slot table, or vacuum table with vacuum pump | |||||
Spindle speed | 24 000 rmp | |||||
Inverter | Delta Inverter | |||||
Motor | Delta Servo Motors | |||||
Reducer | Japan Shimpo gear reducer | |||||
Transmission | Helical Rack and pinion in X Y | |||||
Taiwan CSK Linear guide | ||||||
Ball screw with couper in Z | ||||||
Controller | NC-studio PM95A-3A with HP pc Win 10. & 64bits | |||||
Or (Syntec: FC-60CA) | ||||||
Voltage | 380V/three phases/50Hz | |||||
Linear tool changer | 6 positions | 6 positions | 6 positions | 8 Positions | ||
Weight | 1500 KGS | 1700KGS | 2000KGS | 2200KGS | ||
