The built-in photogrammetry system improves volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm. AXE-B11 offers professional 3D scanning for large-volumes without an extra device.
AXE-B11

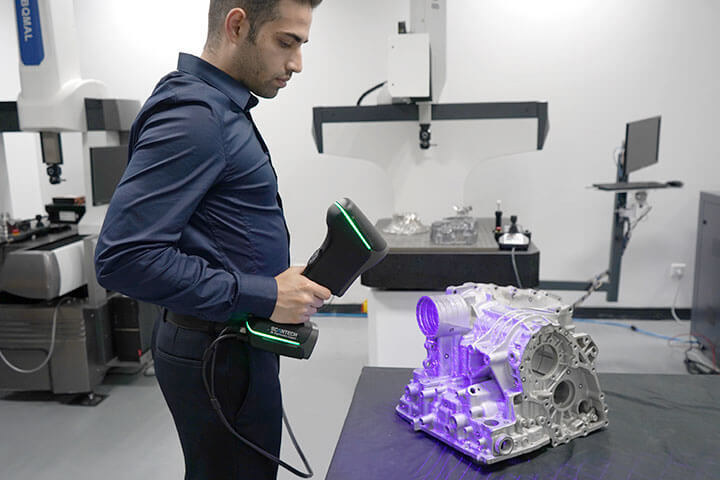

AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.
The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.
The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).
AXE-B11: Accurate Measurement
High-efficiency
The ultra-fast speed facilitates the process of measuring large volumes by 1,300,000 measurements/s, saving numerous working time and labor cost.
With 550 mm × 600 mm of scan area, it only needs very few markers to finish the scanning.
Double Scanning Mode in AXE-B11
Due to 11 crossed blue lasers + 1 extra blue laser line, AXE-B11 supports high-efficiency mode for large-scale scanning and single line scanning mode meets special requirements, such as deep hole and dead angle inspection.
Versatile Combination
AXE-B11 3D scanner fulfills different measurement demands by freely matching with the accurate reference bar, Helpers engineer kit, etc.
Use Cases with AXE-B11:
1. Mold Repair
Mass production of molds usually causes abrasions and deviations. Manufacturers can use 3D scanning to measure the molds regularly, and compare the 3D model against original CAD. With the help of 3D scanners, manufacturers can examine abrasion positions and obtain deviation values quickly. 3D scanning streamlines the process of mold repair and easily reduces errors during mold production.
2. Mold 3D Inspection
Quality assessment of mold contains FAI (First Article Inspection) and quality control. 3D scanner can assist the mold manufacturers to perform the rapid quality assessment in the molding stage. Scantech 3D software ScanViewer provides accurate data support for deviation correction by comparing 3D model with original CAD.
3. Mold Design
The CAD model of mold can be quickly generated by 3D scanning to facilitate secondary development and mold optimization. 3D scanning helps avoid inevitable mold modification, shorten delivery time, and greatly improve the efficiency of mold design.
4. Mold Database Construction
The 3D data of mold can be reserved in database by 3D scanning. The mold database effectively manages the product’s data, process data, drawings and documents, and also enables the 3D data to be shared and searched conveniently.
Read More on the manufacturers website Here.
Tekniset tiedot
| Type | AXE-B11 | ||
|---|---|---|---|
| Laser source | 11 blue laser crosses + 1 extra blue laser line | ||
| Deep hole scanning | 1 extra blue laser line | ||
| Accuracy | Up to 0.020 mm | ||
| Measurement rate | Up to 1,300,000 measurements/s | ||
| Scanning area | Up to 550 mm × 600 mm | ||
| Scanning area (photogrammetry) | 2500 mm × 3000 mm | ||
| Laser class | CLASS Ⅱ（eye-safe） | ||
| Resolution | 0.025 mm | ||
| Volumetric accuracy (without extra device) |
0.020 mm + 0.035 mm/m | ||
| Stand-off distance | 300 mm | ||
| Depth of field | 500 mm | ||
| Depth of field (photogrammetry) | 2500 mm | ||
| Output formats | .stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized | ||
| Operating temperature range | -10℃ – 40℃ | ||
| Interface mode | USB 3.0 |
