KSCAN-Magic
KSCAN-Magic series 3D Laser Scanner opens up the first introduction of infrared laser + blue laser technology with five standard working modes: global initiative infrared laser large area scanning, blue laser crosses fast scanning, blue parallel laser fine scanning, single blue laser deep hole scanning, built-in photogrammetry system.
KSCAN-Magic series 3D laser scanners have a revolutionary breakthrough in performance. Its unparalleled scanning speed, accuracy, detail, scanning area, and depth of field greatly optimize the 3D measurement workflows and accelerate the product time-to-market. To obtain data on hard-to-reach or complex surfaces, KSCAN-Magic series can be equipped with a portable CMM K-Probe, providing a comprehensive 3D digital solution for precision measurement.
KSCAN-Magic has innovative Infrared Laser

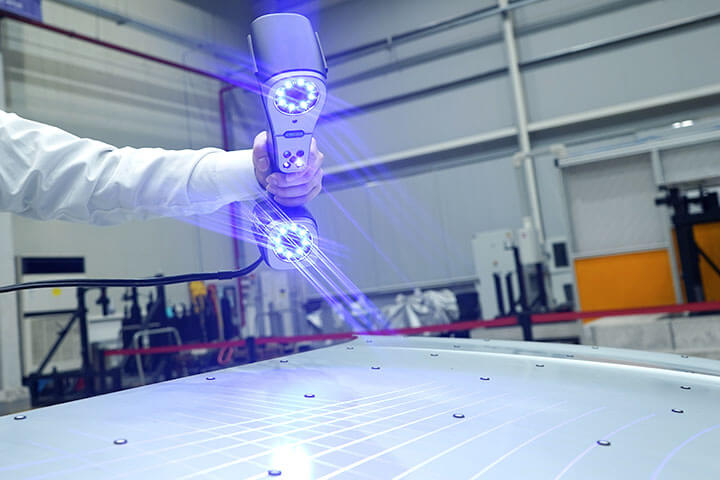

KSCAN-Magic series 3D Laser Scanner innovatively adopts infrared laser scanning technology worldwide. Its ultimate scanning area reaches 1440 mm x 860 mm, achieving precise wide range measurement with ease.
Effortless Efficiency

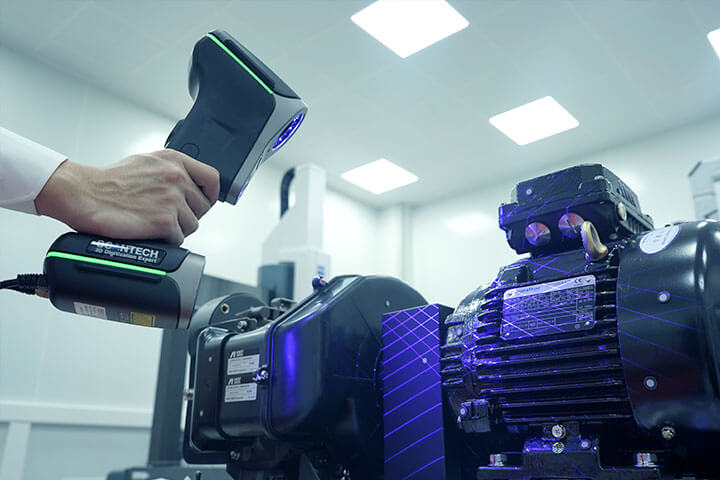

KSCAN-Magic series 3D Laser Scanner delivers an ultra-fast scanning rate, enabling a faster workflow from the set-up to the scan. By flexibly switching the scanning modes, it satisfies different application needs, dramatically improving working efficiency.
Extreme-clear Details with KSCAN-Magic

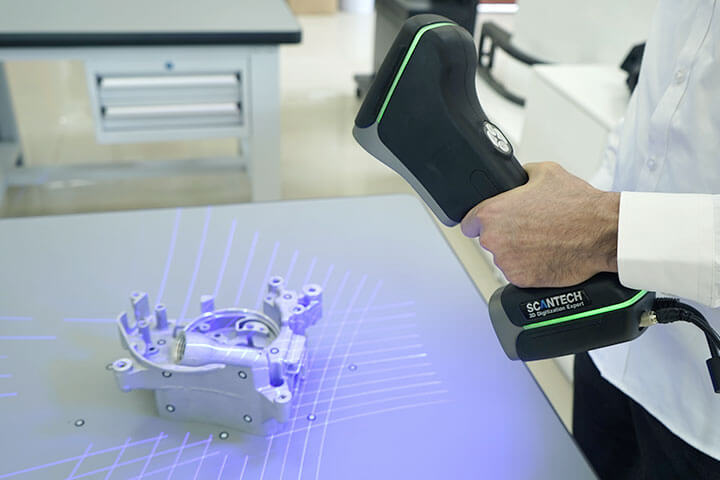

Under hyperfine scanning mode, KSCAN-Magic series 3D laser scanner can accurately obtain complete data on the surface of complex objects, easily capturing every detail with resolution of 0.010 mm.
Single Laser Line Scanning with KSCAN-Magic

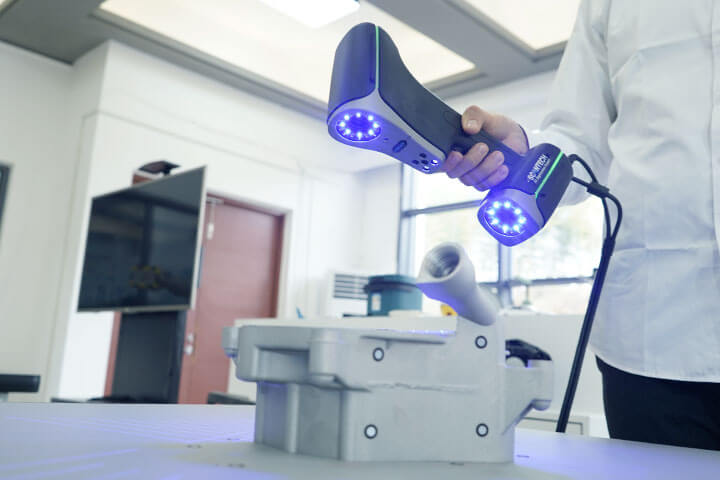

Single laser line scanning mode accurately and quickly captures 3D data of deep holes and dead angle positions.
Metrology-grade NDT Measuring
0.020 mm of scanning accuracy and 0.03 mm/m of volume accuracy, deliver ultra-high precision NDT for the aerospace industry.
More applications for KSCAN-Magic
Three-dimensional scanning technology can be applied to the inspection of aircraft parts manufactured. It can generate 3D models of different parts for virtual assembly. With virtual representations of physical models, it reduces the need for physical assembly prototyping. It is much more efficient to verify the accuracy of design, identify potential assembly errors, and modify the design model.
Scantech’s professional team is dedicated to providing all-in-one 3D solutions for your business. Click here to know more information about how 3D scanning can be used.
Tekniset tiedot
| Type | KSCAN-Magic | KSCAN-MagicⅡ | |
|---|---|---|---|
| Scan mode | Ultra-fast scanning | 11 blue laser crosses | 13 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines | ||
| Large area scanning | 11 parallel infrared laser lines | ||
| Deep hole scanning | 1 extra blue laser line | ||
| Laser lines in total | 41 | 45 | |
| Accuracy | 0.020 mm | ||
| Scanning rate | Up to 1,350,000 measurements/s | Up to 1,650,000 measurements/s | |
| Scanning area | Up to 1440 mm × 860 mm | ||
| Photogrammetry system | Scanning area | 3760 mm × 3150 mm | |
| Depth of field | 2500 mm | ||
| Laser class | CLASS Ⅱ (eye-safe) | ||
| Resolution | Up to 0.010 mm | ||
| Volume accuracy | Work alone | 0.015 mm + 0.030 mm/m | |
| Work with 1m reference bar | 0.015 mm + 0.020 mm/m | ||
| Work with MSCAN-L15 | 0.015 mm + 0.015 mm/m | ||
| Stand-off distance | 300 mm | ||
| Depth of field | 925 mm | ||
| Portable CMM K-Probe | Single point repeatability | 0.030 mm | |
| Tracking frequency | 60 hz | ||
| Intelligent edge inspection module | Edge accuracy | 0.030 mm | |
| Pipe inspection module | Output formats | YBC / LRA / compensation value | |
| Output formats | .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized | ||
| Operating temperature range | -10℃ – 40℃ | ||
| Interface mode | USB 3.0 | ||
