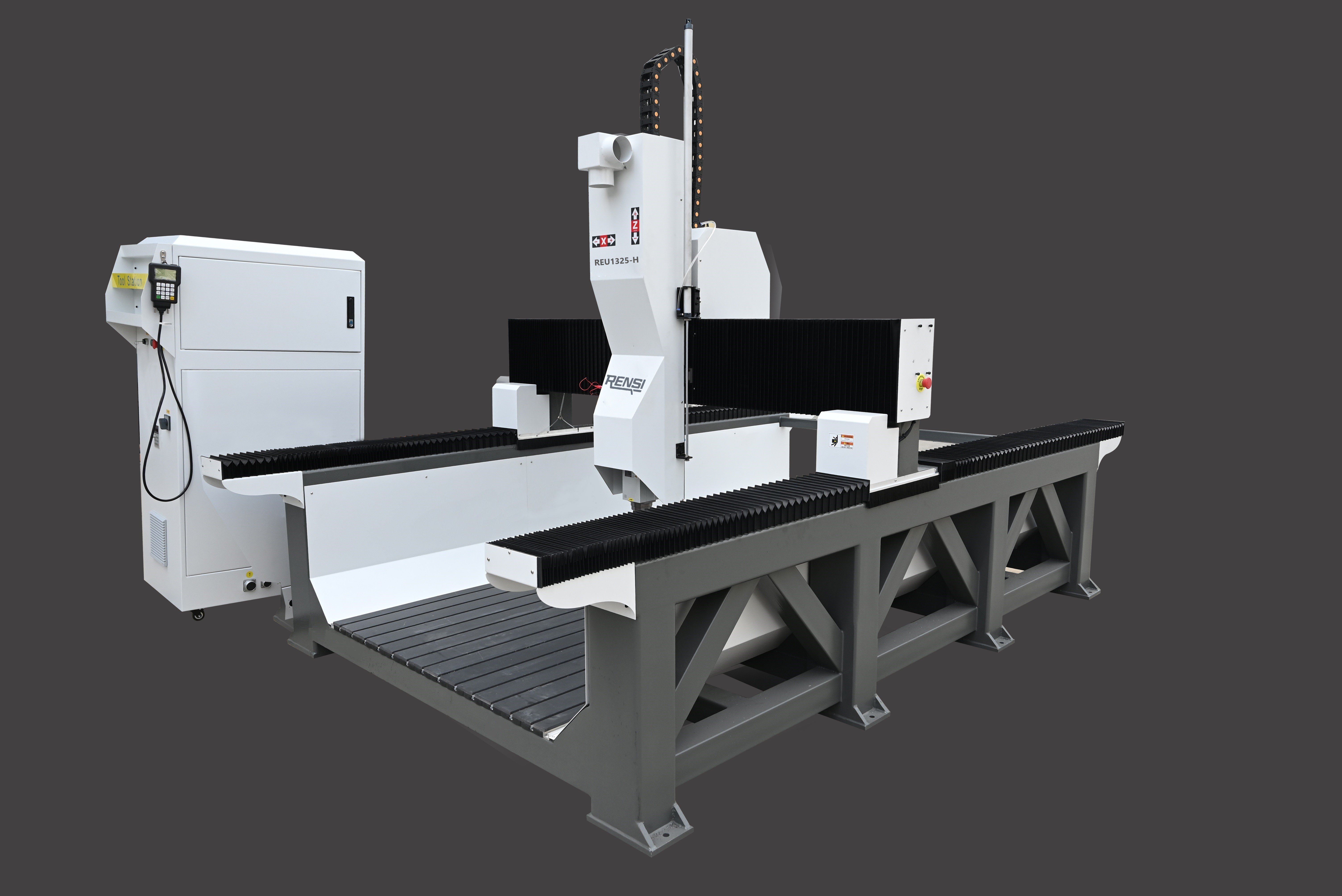

CNC Router with tool changer and High Z Axis
| Item | REU1315ATC-HZ | REU1325ATC-HZ | REU1530ATC-HZ | REU2030ATC-HZ | ||
| Working size (mm) | 1300x1500x700 | 1300x2500x700 | 1500x3000x700 | 2000x3000x700 | ||
| Table to gantry | 800mm | |||||
| Max. travel speed | 40m/min | |||||
| Max. working speed | 20/min (depend on the materials) | |||||
| Spindle | 9KW HQD ATC spindle | |||||
| Collect/tool holder | ER32/ISO30 | |||||
| Table | T-slot table, or vacuum table with vacuum pump | |||||
| Spindle speed | 24 000 rmp | |||||
| Inverter | Delta Inverter | |||||
| Motor | Delta Servo Motors | |||||
| Reducer | Japan Shimpo gear reducer | |||||
| Transmission | Helical Rack and pinion in X Y | |||||
| Taiwan CSK Linear guide | ||||||
| Ball screw with couper in Z | ||||||
| Controller | NC-studio PM95A-3A with HP pc Win 10. & 64bits | |||||
| Or (Syntec: FC-60CA) | ||||||
| Voltage | 380V/three phases/50Hz | |||||
| Linear tool changer | 6 positions | 6 positions | 6 positions | 8 Positions | ||
| Weight | 1500 KGS | 1700KGS | 2000KGS | 2200KGS | ||
